PLC Controlled Automatic Vacuum Lamination Machine For PCB Dry Film Exposure Laminating

Name: PLC Controlled Automatic Vacuum Lamination Machine For PCB Dry Film Exposure Laminating
Brand: ZhongTu
Price: 780 USD

Wholesale PLC Controlled Automatic Vacuum Lamination Machine For PCB Dry Film Exposure Laminating from china suppliers

MOQ : 1

Packaging Details : wood case

Effective Platform Dimensions : 290 × 220 × 45mm

Payment Terms : T/T

Lamination Precision : ±0.1mm

Dimensions : 40*40*50cm

Supply Ability : 1000set/month

Weight : 30KG

Model Number : ZT-ZQBY510

Vacuum value : 99%

Function : Lamina Glass With LCD Screen by Vacuum

Brand Name : ZhongTu

Temperature range : 0-180 degrees

Power : 850W

Operating Air Pressure : 4-8KGF/C ㎡

Price : 780

Voltage : AC110-220V/50-60HZ

Model NO. : ZT-ZQBY510

Processing time : 15 seconds

Certification : CE, ISO, RoHS

Place of Origin : China

Vacuum Range : 0~150Kpa

Production capacity : 1000

Operation mode : Automatic

Contact Now

9inch 99% yield Precision Vacuum Laminator For LCD Touch Screen Glass Film

Product Overview

The vacuum screen press, also known as mobile phone screen press, is a specialized device for replacing mobile phone LCD monitors.

It operates by creating a vacuum state to achieve a tight fit of the mobile phone screen.

Key Features

High Precision Vacuum Lamination (-0.095MPa) – Bubble-free, 99% yield for LCD/OLED bonding.
Fast 15s Lamination Cycle – 2–4x efficiency vs traditional machines.
0–180°C Dual Independent Heating – PID control ±2°C for OCA/SCA curing
Adjustable Pressure (0–0.6MPa) & Time – Multi-stage settings for diverse products.
Rigid Frame & Anti-Rotation Rods – ±0.02mm parallelism, stable pressing quality.
Compact Desktop Design – Small footprint, easy integration into production lines
PLC + Touch Screen Control – One-click auto operation, 100 programs storage
4–32 Inch Wide Compatibility – For mobile/tablet LCD, OLED, touch screen repair
CE Certified & Imported Components – Reliable performance, low maintenance.
1-Year Warranty & Customization – Global support, OEM/ODM available.

Technical Specifications

Model	ZT-ZQBY510(9inch)	ZT-ZQBY310(15inch)	ZT-THJ036(32inch)
Equipment Application	Used for vacuum lamination of various precision products, especially suitable for lamination of electronic display products such as mobile phones and tablets. It can achieve bubble-free and high transmittance lamination effect, and can also adapt to the lamination needs of various types of products such as curved surfaces and flat surfaces
Applicable Industries	Electronic manufacturing, optical component processing and other industries
Power	Approx. 850W	Approx. 1200W	Approx. 2200W
Input Voltage	AC 110-240V/50-60HZ
Overall Machine Dimensions (L/W/H)	400 × 500 × 500mm	510mm × 640mm × 500mm	930mm × 1400mm × 1350mm
Effective Platform Dimensions (L/W/H)	290 × 220 × 45mm	400mm × 640mm × 50mm	700mm × 490mm × 50mm
Transmission Method	Pneumatic transmission, upper and lower pressing type
Precision Guide Rail	Taiwan HIWIN/TBI Brand
Lamination Precision	±0.1mm (meets the precision requirements of precision lamination equipment)
Control System	Touch screen + PLC,enabling precise parameter setting and control
Vacuum Range	0~150Kpa, adjustable according to operation needs to ensure bubble-free lamination
Upper and Lower Platforms	Heatable, temperature adjustment range 0~85℃
Parameter Settings	Adjustable pressing force and holding time, to suitable different products
Communication Method	USB + R232
Operating Environment Humidity	20-90%
Operating Air Pressure	4-8KGF/C ㎡
Operating Vacuum	Need used with the dedicated vacuum pump ( configured by customer)
weight	30KG	35KG	350KG

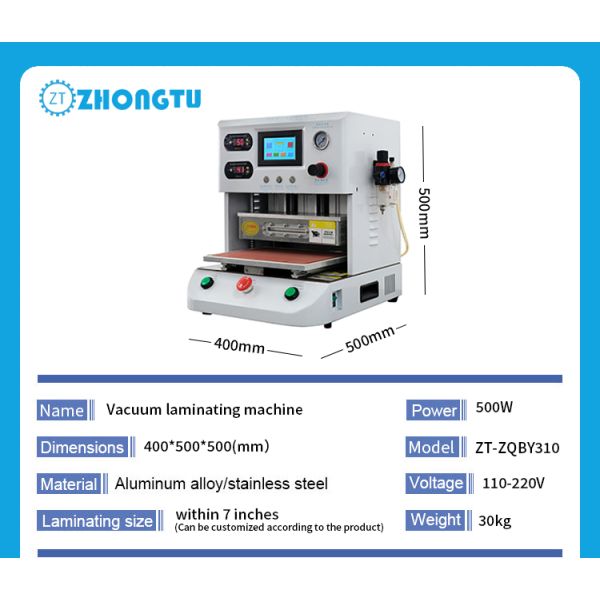

Product Images

PLC Controlled Automatic Vacuum Lamination Machine For PCB Dry Film Exposure Laminating

✅ Why Zhongtu

10+ years in automation R&D & manufacturing
In-house machining & assembly
CE/RoHS compliant
1-year warranty +3 years core components warranty+ 24h after-sales support
